C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic
C Purling Roll Forming Machine
Equipment components of C Z Purlin Shape Frame Roof Steel Purling
Making Machine Automatic C Purling Roll Forming Machine:
Man-made uncoiler, Roll forming machine, computer control system,
hydraulic control system, cutting
Our products are widely used in various industrial factory,
civilian building, warehouse and easy steel building manufacturing,
and have features such as nice appearance and durable.
Technical parameters :
1. | Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main
Machine Of Roll Forming, Hydraulic Motor, Pre-Punching
Device,Pre-Cutting Device, Hydraulic Station, PLC Control,
Supporter Table. |
2. | Control System | PLC Inverter Encoder Touch Screen |
3. | Main Frame | 400mm H-Beam |
4. | Total Power | 22 kw |
5. | Power Supply | 380V, 3-Phase,50Hz |
6. | Forming Speed | 12-24m/min |
7. | Roll Station | 18 stands |
8. | Roller Diameter | 80mm |
9. | Effective Width | 80-300mm |
10. | Feeding Thickness | 1.5-3.0mm |
11. | Backboard Thickness | 20mm |
12. | Cutter Standard | GCr12 |
13. | Roller Standard | Gcr15# |
14. | Overall Size | About 8500×1000×1400mm |
15. | Total Weight | About 10T |
16. | Custom | According to customer's requirements |
NOTE: All technical parameters can be changed according to user s
need, and only as a reference.
2.C Z Purlin Roll Forming Machine Components specification
(1) Manual Uncoiler
Max.Capacity:5T
(2)Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix
length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C
(3)Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of
hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4)Control System
It adopts PLC control system, Color Touch Screen; the target length
can be adjusted by it.
Computed mode: automatic or manual
(5)Encoder
The counter gauges length, and modulates pulses.
(6)Simple Stack
It is used for loading the formed plate.

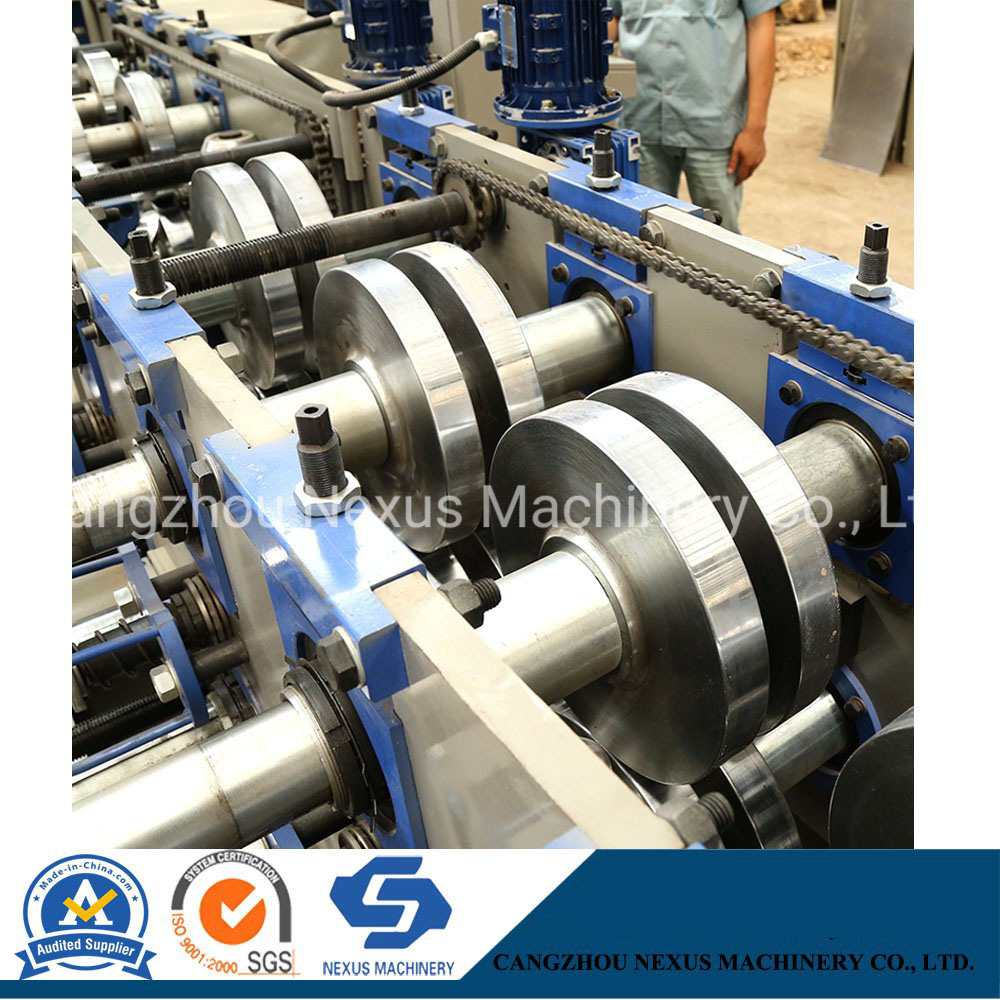

Photo for C Z Purlin Shape Frame Roof Steel Purling Making Machine
