High Speed Solar Photovoltaic Stents Stud Roll Forming Machine
High Speed Solar Photovoltaic Stents Stud Roll Forming Machine
includes decoiler, guide frame, lever/feeding section, continuous
bottom hole punching section, forming section, positioningand
cutting section, collection table and electrical control system
etc.
Equipment capacity:
1. Equipment production capacity: width≤400mm, thickness of steel
material: 1-2.5mm
2. Production speed: 8-15m/min
3. Total power: about 21.5kw
Structure of Solar Stand Steel Rack Upright Roll Forming Machine .
Beams
Horizontal bracking
Diagonal bracking
Uprights
Screw, safe pins
Protector
Trays ,pallets ,or steel mesh plates

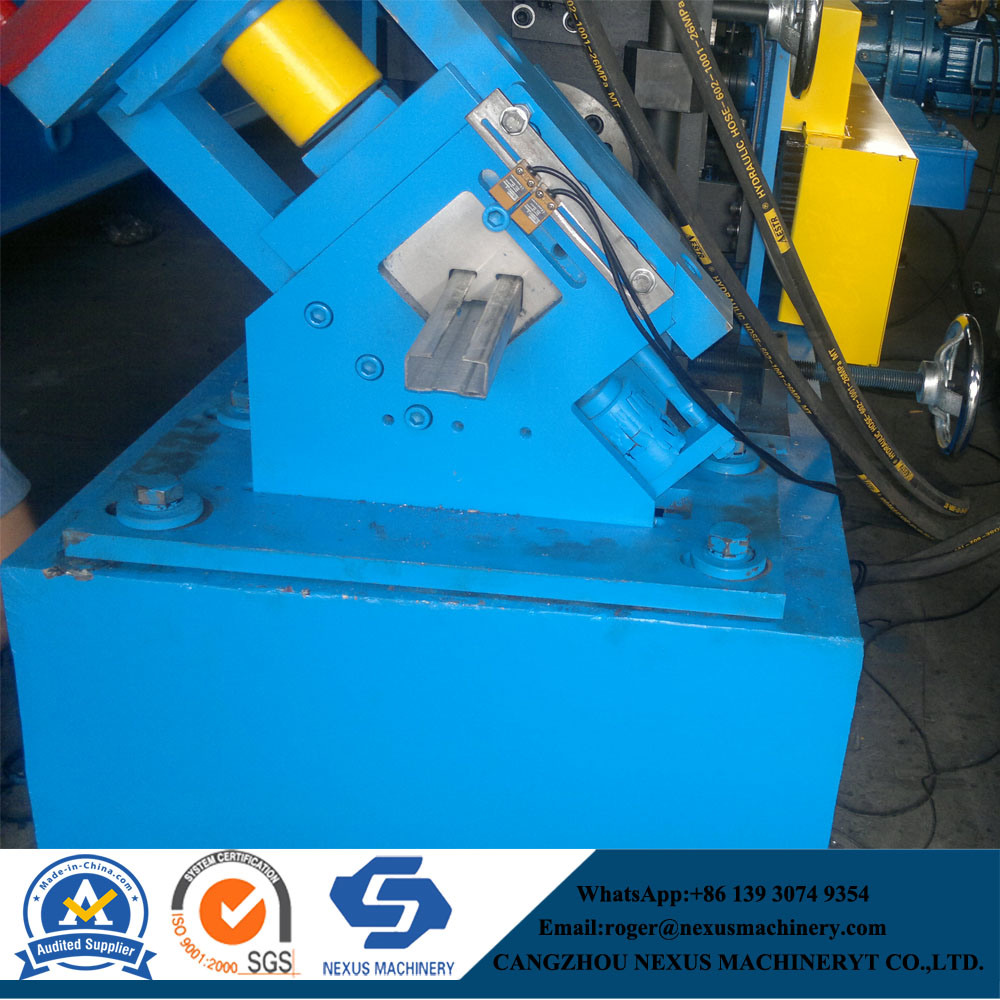

Photos of High Speed Solar Photovoltaic Stents Stud Roll Forming
Machine for Reference:
Determinant of High Speed Solar Photovoltaic Stents Stud Roll
Forming Machine
1. The weight of your goods (trays, steel containers / boxes are
included)
2. The dimension of your goods together with pallets ( Length Width
Height )
3. The maximum height of your forklift and the available height of
your warehouse
4. The dimension of your forklift
5. The fork direction
6. The dimension of your warehouse
7. The path of the transportation
Advantages of High Speed Solar Photovoltaic Stents Stud Roll
Forming Machine
1.It is suitable to be used in factories, manufactures and
warehouse
2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3.Perfect for storing categorized products in a neat and tidy way
4.heavy-duty shelf set for warehouse shelving
5.Strong structure
6.Easy installation
7.Customization is acceptable
Main Machine Parameters
NO. | Name | unit | parameter | remark |
1
| materials | type |
| Mild steel,galvanized sheet |
|
Plate strength | Map | ≥350 |
|
Plate thickness | mm | 1.0~1.6 |
|
2 | specification | mm |

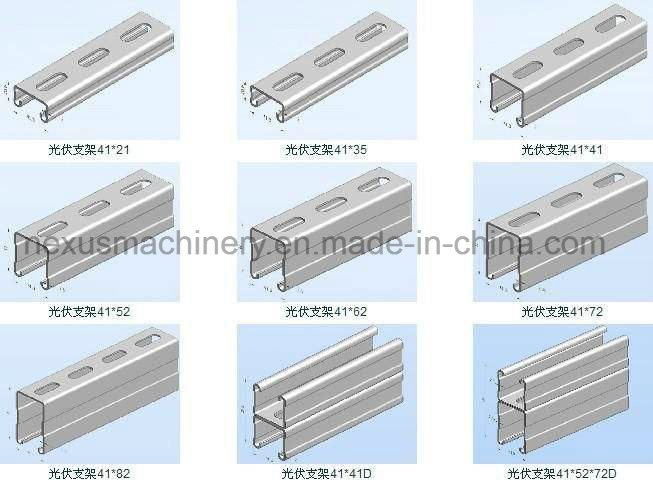

See the pictures
|
|
3 | speed | m/min | 18 |
|
4 | Material of the roller |
| GCr15,Hardening treatment |
|
5 | drive type |
| Chain |
|
6 | power | kw | About 35.5 |
|
7 | Electrical control system |
| PCL frequency control |
|
8 | Size(lengthXwidthXheight) | m | 20X4X3.9 |
|
Main Accessories |
1 | Decoiler | 1 set |
2 | Main Forming Machine | 1 set |
3 | Correction System | 1 set |
4 | Hydraulic Station | 1 set |
5 | Auto-Cutting system | 1 set |
6 | PLC Control System | 1 set |
7 | Run Out Table | 1 set |
FAQ:
1. How long the machine could be made?- Normally speaking, Solar
Stand Steel Rack Upright Roll Forming Machine could be made within
60 working days. If you need machines in a hurry, we can make it
for you within 45 working days .
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
