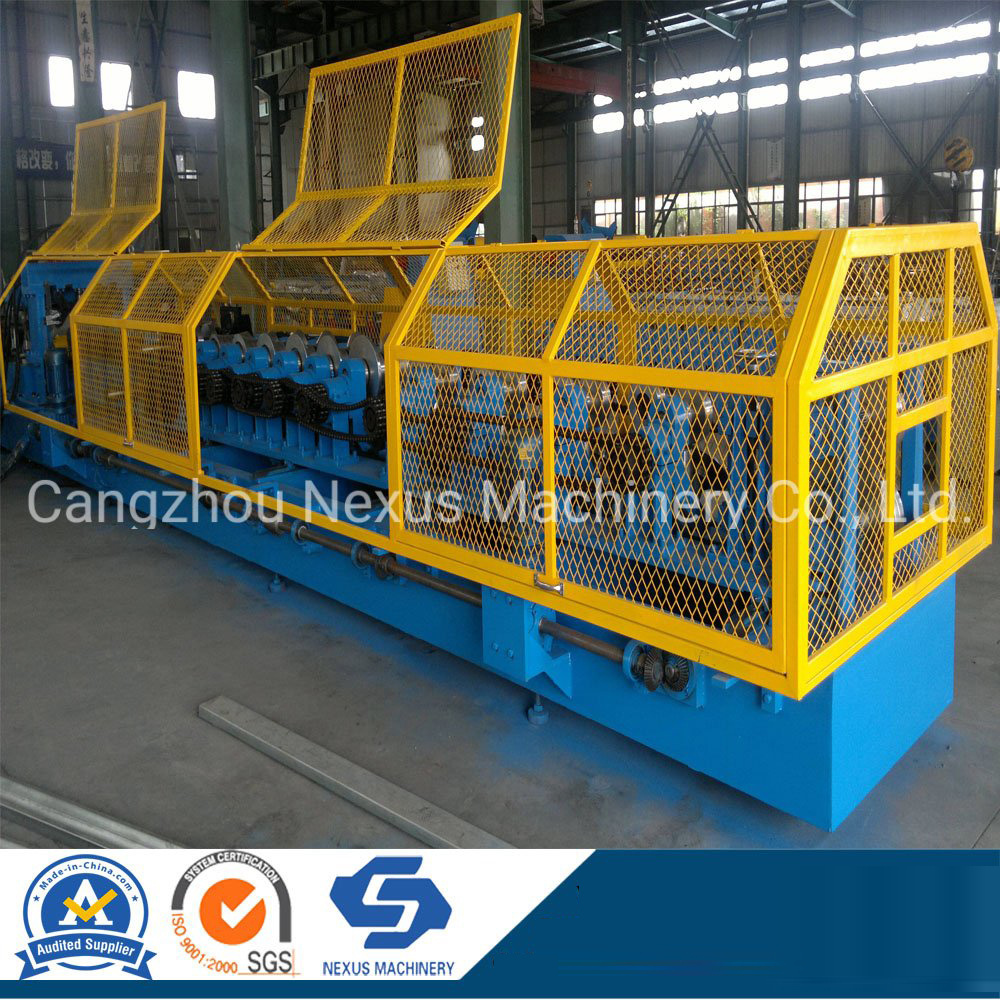

Automatic Steel Tile Making Machine Type Galvanized Steel C Z
Purlin Roll Forming Machine
Technical parameters :
| technical specification |
| main systems | |
| 1 | decoiler | feeding material by the strength yielded by roller part |
| 2 | adjustable device | leveling the material |
| 3 | roll forming system | form the profile you want |
| 4 | cutter | cut the sheet at fixed length |
| 5 | PLC | set length ,pieces and control the producing |
| 6 | run out table | support the finished sheet |
| 7 | hydraulic station and motor | supply the power |
| components for choice | |
| 1 | hydraulic decoiler | |
| 2 | safety cover | for safety |
| 3 | auto run out table | support and move the finished product |
| main parameters | |
| 1 | feeding material | color steel coil, aluminum,GI,PPGI |
| 2 | material thickness | 0.2~1mm |
| 3 | material yield stress | 230~550mpa |
| 4 | feeding width | up to 1300mm |
| 5 | forming speed | 8~25m/min |
| 6 | cutter material | cr12 |
| 7 | roller material | 45# steel with chrome treatment |
| 8 | roller station | 18 stands (according to different profiles) |
| 9 | controller | PLC , touch screen and button |
| 12 | hydraulic station motor power | 3kw |
| 13 | hydraulic presure | 12mpa |
| 14 | main motor power | 7~8.5kw |
| 15 | voltage | 380v 3ph 50hz / as your needs |
| 16 | total weight | 6~8t |
| 17 | dimension | 10 x 1.5 x 1.5m |
ABOUT US:CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich
panel line all kinds of roll forming machines, such as glazed tile
roll forming machine, roof/wall panel roll forming machine, double
layer roll forming machine, Full-Automatic C and Z Purlin Roll
Forming Machine, floor deck roll forming machine, highway guardrail
machine, dust shield machine, ridge cap machine, roll shutter door
machine, uncoiling & leveling & slitting & recoiling line, all
kinds of decoilers and stackers, and many other related equipments
like shear, punch, slitter, leveler, crimping curving, bending and
so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils
,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel
coils/sheet ,cold/hot rolled sheet/cols , professional service and
favorable price , satisfied with the quality ,welcome to every
customers come to visit and buy ! ! !We will 24 hourse services for
you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light
gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry,
we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
