3-10 Ton Customized Aluminum Steel Coil Manual Uncoiler Decoiler
Machine /Hydrualic Uncoiler Unwinder Machines3-10 Ton Customized Aluminum Steel Coil Manual Uncoiler Decoiler
Machine /Hydrualic Uncoiler Unwinder Machines is mostly used for
metal roll forming production line or metal sheet cutting line. The
fuction of hydraulic decoiler machine is save labor and make the
work more efficiency. For this decoiler machine, it can support
3-10 tons metal coil, max width is 700mm. We adopt 3KW electric
motor to rotate the shaft, it can decoil automatically. In a
certain, it speed up the whole production because passive decoiler
need to be pulled metal coils by roll forming machine or cutting
machine. Apparently, it is low speed and dangerous.
1. Main specification:| 3-10 Ton Customized Aluminum Steel Coil Manual Uncoiler Decoiler
Machine /Hydrualic Uncoiler Unwinder Machines |
| Capacity | 3 tons |
| Feeding width | MAX 700mm |
| Expanding range | 460-520mm |
| Electricity Supply | 380V 50HZ, 3PHASES or Customized |
| Motor Power | 3 KW |
| Hydraulic Station | 3 KW |
| Hydraulic Pressure | 16Mpa |
| Weight of Machine | 1 ton |
Equipment list :
| No. | Product Name | QTY |
| 1 | 3-10 Ton Customized Aluminum Steel Coil Manual Uncoiler Decoiler
Machine /Hydrualic Uncoiler Unwinder Machines | 1 |
- The structure is simple and the appearance of the machine is
beautiful because we adopt the shape-steel structure and most of
the connectors are screw which make the machine flexible and
stronger.
- All the components of machine are from brand-famous enterprise so
that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming .
- It is very easy to install the equipment and suitable for producing
in the factory.
- Low noise with high efficiency.

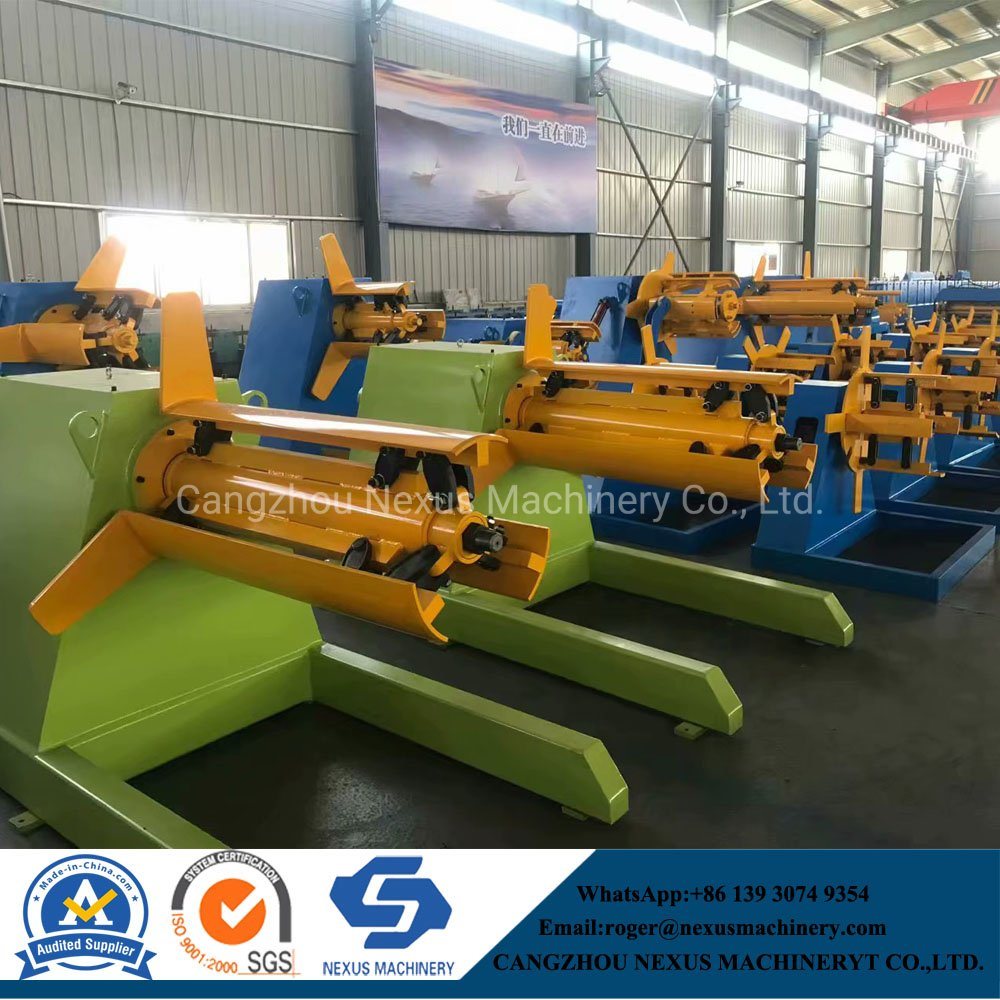

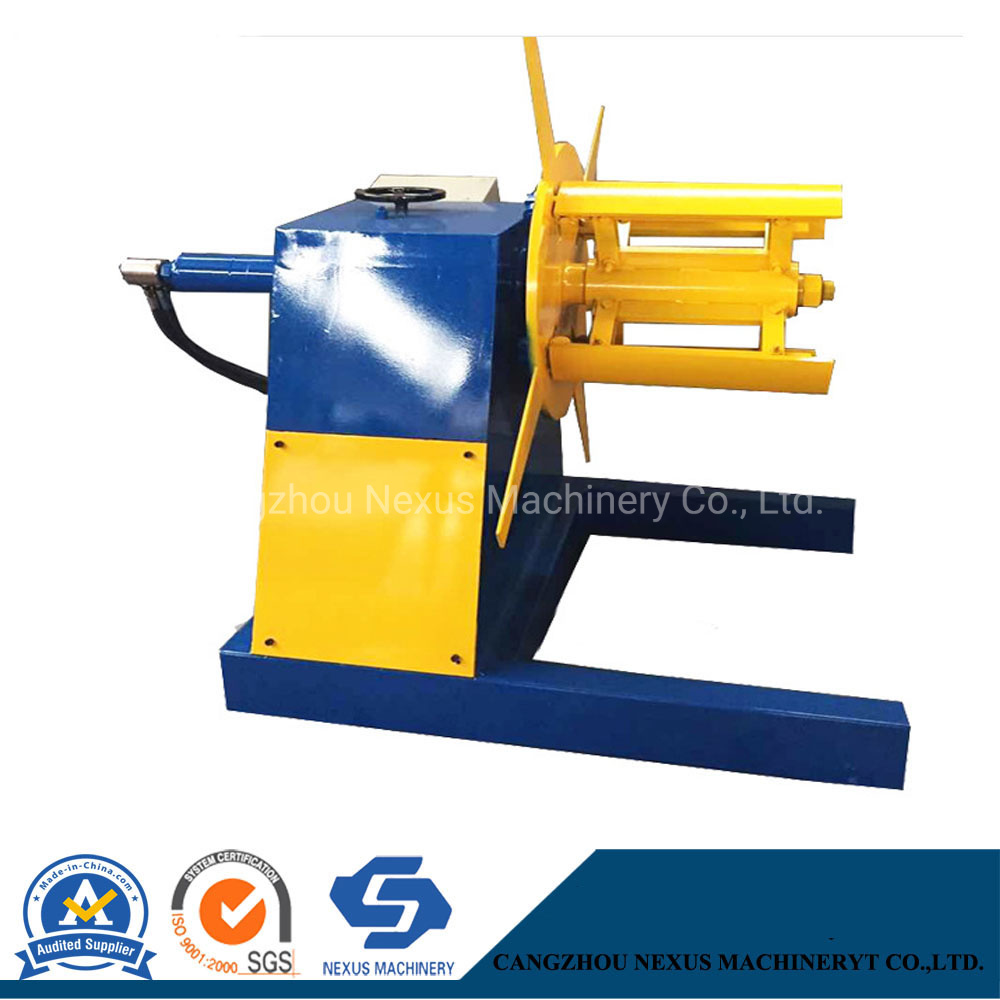

4. Photos of 3 Ton Electrical Motor Decoiler/Uncoiler/Unwinder
Machine for Steel Roll Forming Machine for Reference:
About Us:
Established in 2005, Cangzhou Nexus Machinery Co., Ltd is
experienced manufacturer & exporter of cold roll forming machine
with ISO quality system. Our R&D department is staffed with
senior engineers who has more than 20 years experience in metal
forming machine industry, so we are able to assist customers with
professional designing and solution.

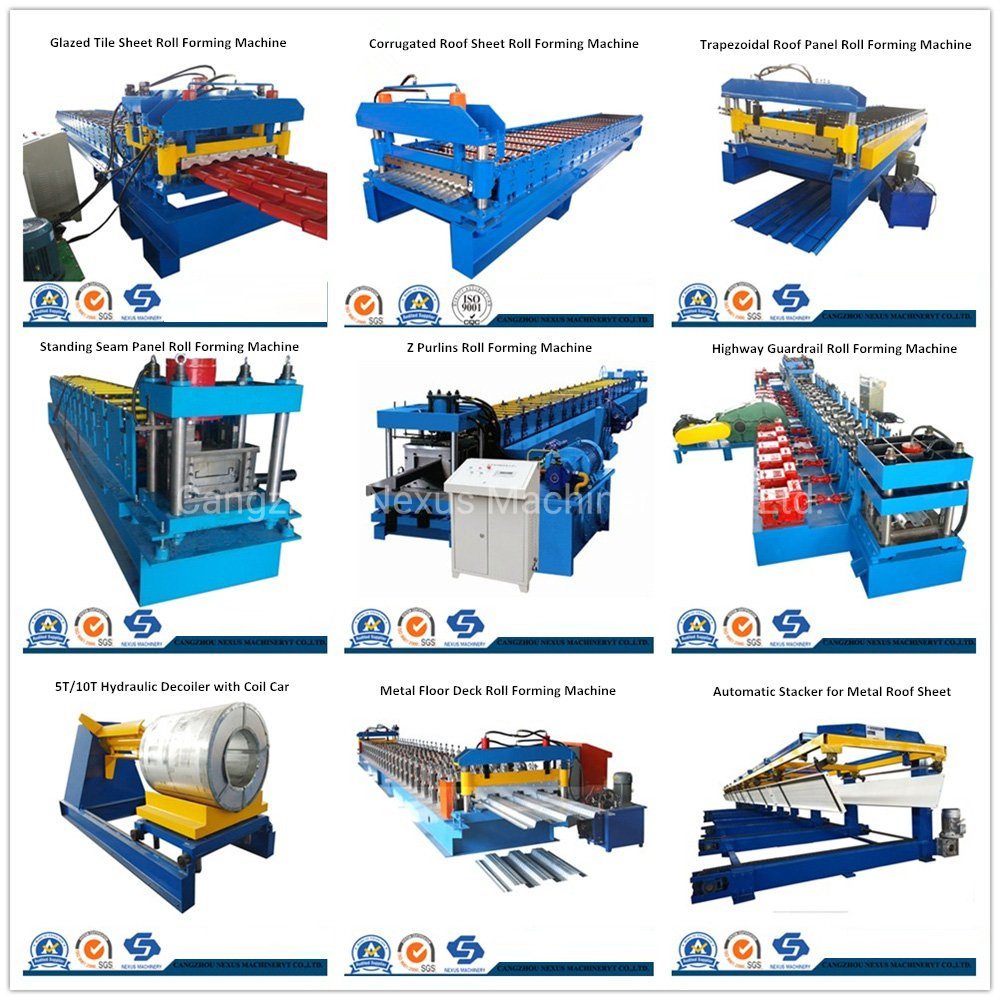

Our range of products: Roof Sheet Roll Forming Machine, Glazed Tile
