Storage Upright Beam Rack Roll Forming Production Machine with Good
Price
Storage Upright Beam Rack Roll Forming Production Machine with Good
Price includes decoiler, guide frame, lever/feeding section,
continuous bottom hole punching section, forming section,
positioningand cutting section, collection table and electrical
control system etc.
Equipment capacity:
1. Equipment production capacity: width≤400mm, thickness of steel
material: 1-2.5mm
2. Production speed: 8-15m/min
3. Total power: about 21.5kw
Structure of Heavy Duty Pallet Racking.
Beams
Horizontal bracking
Diagonal bracking
Uprights
Screw, safe pins
Protector
Trays ,pallets ,or steel mesh plates
Photos of Storage Upright Beam Rack Roll Forming Production Machine
with Good Price for Reference:
Determinant of Heavy Duty Pallet Racking design
1. The weight of your goods (trays, steel containers / boxes are
included)
2. The dimension of your goods together with pallets ( Length Width
Height )
3. The maximum height of your forklift and the available height of
your warehouse
4. The dimension of your forklift
5. The fork direction
6. The dimension of your warehouse
7. The path of the transportation
Advantages of Heavy Duty Pallet Racking .
1.It is suitable to be used in factories, manufactures and
warehouse
2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3.Perfect for storing categorized products in a neat and tidy way
4.heavy-duty shelf set for warehouse shelving
5.Strong structure
6.Easy installation
7.Customization is acceptable
Main Machine Parameters
NO. | Name | unit | parameter | remark |
1
| materials | type |
| Mild steel,galvanized sheet |
|
Plate strength | Map | ≥350 |
|
Plate thickness | mm | 1.0~1.6 |
|

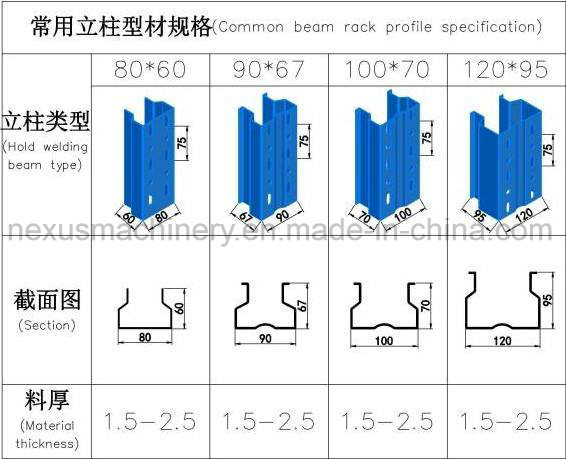

2 | specification | mm |
See the pictures
|
|
3 | speed | m/min | 18 |
|
4 | Material of the roller |
| GCr15,Hardening treatment |
|
5 | drive type |
| Chain |
|
6 | power | kw | About 35.5 |
|
7 | Electrical control system |
| PCL frequency control |
|
8 | Size(lengthXwidthXheight) | m | 20X4X3.9 |
|
Main Accessories |
1 | Decoiler | 1 set |
2 | Main Forming Machine | 1 set |
3 | Correction System | 1 set |
4 | Hydraulic Station | 1 set |
5 | Auto-Cutting system | 1 set |
6 | PLC Control System | 1 set |
7 | Run Out Table | 1 set |
FAQ:
1. How long the machine could be made?- Normally speaking, Storage
Upright Beam Rack Roll Forming Production Machine with Good Price
could be made within 60 working days. If you need machines in a
hurry, we can make it for you within 45 working days .
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
