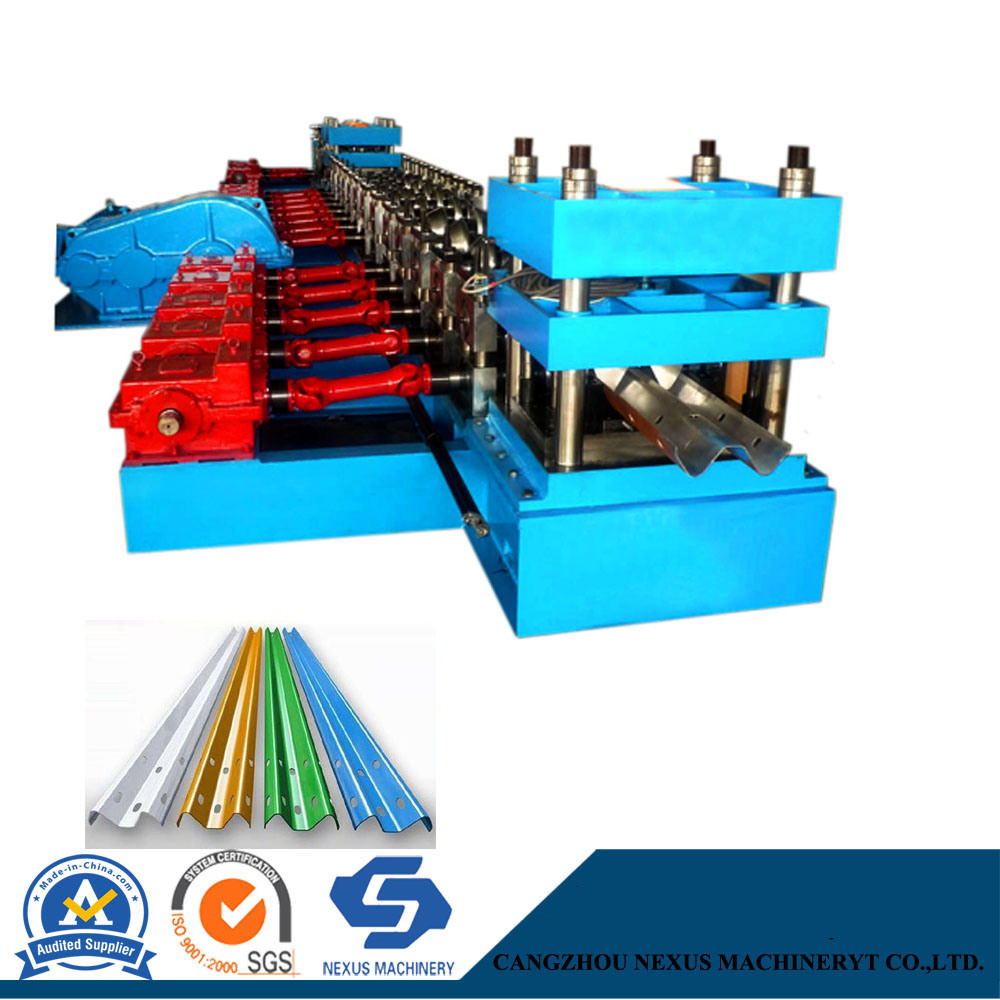

W Beam Crash Barrier Highway Guardrail Machine Price

Ask Lasest Price
Supply Ability :	10 Sets Per Month
Payment Terms :	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Certification :	CE, GS, ISO9001

Add to Cart

Product Details
Company Profile

W Beam Crash Barrier Highway Guardrail Machine Price

Product Description

Customer Question & Answer

Ask something for more details (0)

W Beam Crash Barrier Highway Guardrail Machine Price

Profile drawings:

The thickness of Material: 2.0-4.0 mm

Working flow:

Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table
W Beam Crash Barrier Highway Guardrail Machine Price

Main Specification

Manual decoiler

Capacity: 5 ton
Loading width: MAX 600mm
Valid expanding range for coil inner diameter: 480-520mm

Main roll forming system

Main motor power: 50kw
Separate motor reducer: 750type
Punching: Hydraulic pre-punching before forming
Punching mould:Cr12mov
Hydraulic power: 7.5KW
Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
Leveling rollers: 7rollers(three upper and four lower)
Roll forming station: 16 groups
Diameter of main shaft: 100mm
Drive: independent gearbox with universal joint
Raw material: Black steel & galvanized steel
Thickness of Raw material: 2.0-4.0mm
Width of Raw material: 482mm
Working speed: 10m--15m/min(Exclude cutting time)
Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
Cutting blade: Cr12mov
Cutting tolerance: +/- 1.5mm
Hydraulic pressure: 30Mpa
Weight of machine: about 25ton
Size of machine: About 9000×2150×1500mm L x W x H
Color of machine: yellow and blue
Coder: Omron
Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
Computer operating panel: touching screen

FAQ:

1. How long the machine could be made?- Normally speaking, guardrail machine could be made within 60 working days. If you need machines in a hurry, we can make it for you within 45 working days.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
