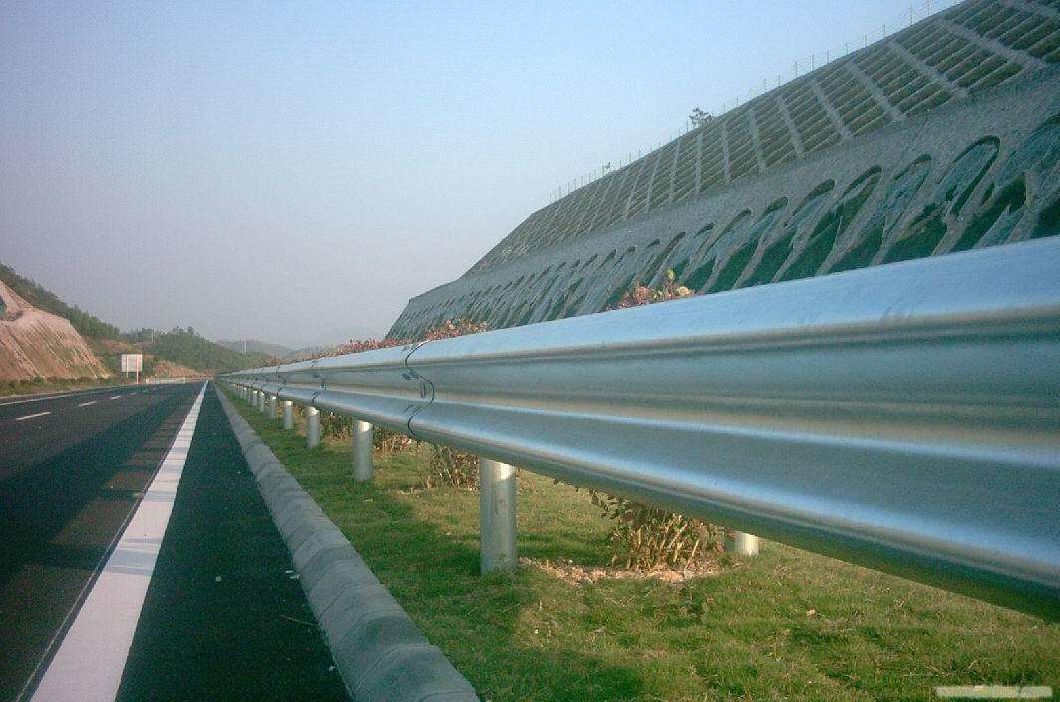

Construction Building Material Delta PLC And Inverter Plc Metal Highway Guardrail Fence Sheet Roll Forming Machine

Profile drawings:

The thickness of Material: 2.0-4.0 mm

Working flow:

Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table
Construction Building Material Delta PLC and Inverter PLC Metal Highway Guardrail Fence Sheet Roll Forming Machine

Main Specification

Manual decoiler

Capacity: 3 ton
Loading width: MAX 600mm
Valid expanding range for coil inner diameter: 480-520mm

Main roll forming system

Main motor power: 50kw
Separate motor reducer: 750type
Punching: Hydraulic pre-punching before forming
Punching mould:Cr12mov
Hydraulic power: 7.5KW
Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
Leveling rollers: 7rollers(three upper and four lower)
Roll forming station: 16 groups
Diameter of main shaft: 100mm
Drive: independent gearbox with universal joint
Raw material: Black steel & galvanized steel
Thickness of Raw material: 2.0-4.0mm
Width of Raw material: 482mm
Working speed: 10m--15m/min(Exclude cutting time)
Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
Cutting blade: Cr12mov
Cutting tolerance: +/- 1.5mm
Hydraulic pressure: 30Mpa
Weight of machine: about 25ton
Size of machine: About 9000×2150×1500mm L x W x H
Color of machine: yellow and blue
Coder: Omron
Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
Computer operating panel: touching screen
