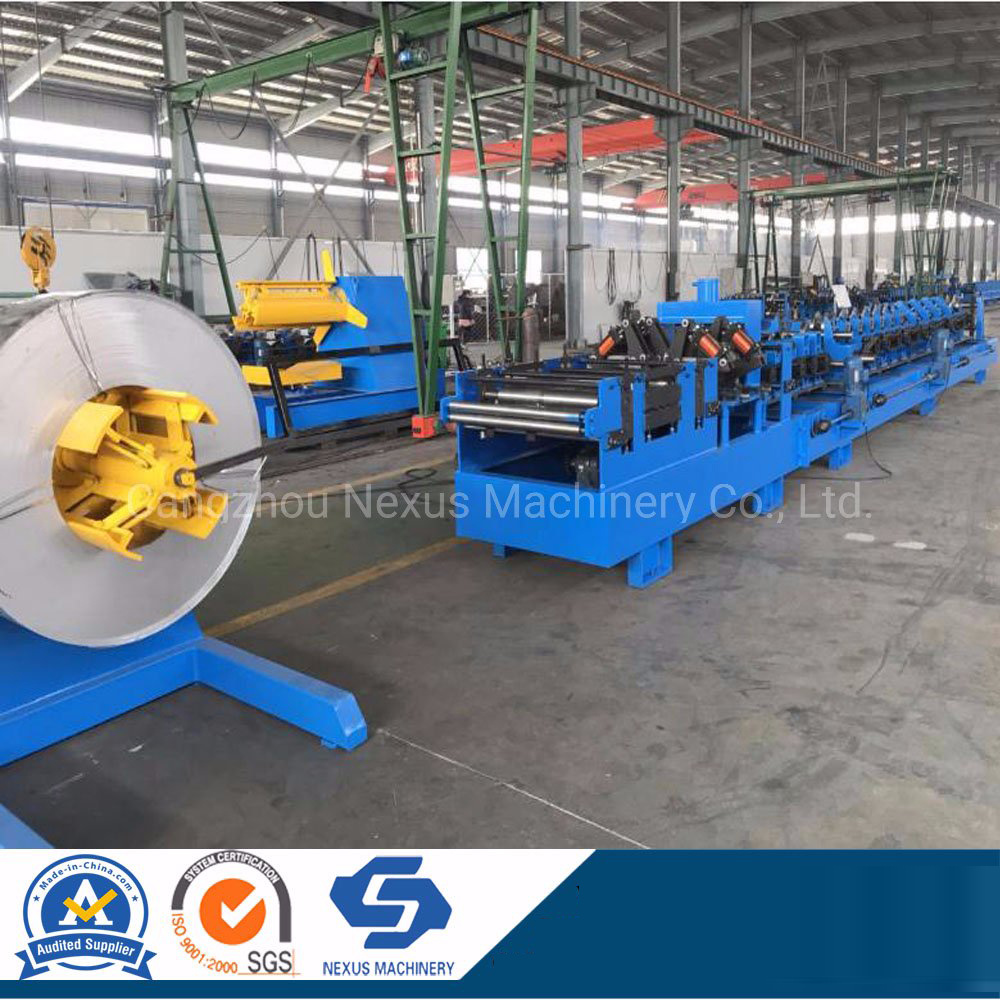

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ
changeable Purlin Machine
CZ-shaped purlin is good in bending resistance, straightness, and
it can cut, punch automatically, it is very easy and convenient to
use. It can be used as bearing structure in big and medium sized
building, such as factories, warehouses, garages, hangars, gyms,
exhibitions, theater and so on.
Technical parameters :
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ
changeable Purlin Machine |
No. | Item | Main performance parameters |
1. | Processing material | 1.5-3.0mm |
2. | Processing thickness | GI Steel |
3. | Profile sizes | C80-300mm Z120-300mm |
4. | Material of rollers | Cr12 |
5. | Material of shaft | 45# |
6. | Diameter of shaft | 80mm |
7. | Roller driven | Decelerating Motor+Chain Transmission |
8. | Cutting model | Hydraulic cutting |
9. | Total power | 2+4kw |
10. | Voltage | 380V 50HZ or at buyer's request |
ABOUT US:CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich
panel line all kinds of roll forming machines, such as glazed tile
roll forming machine, roof/wall panel roll forming machine, double
layer roll forming machine, Full-Automatic C and Z Purlin Roll
Forming Machine, floor deck roll forming machine, highway guardrail
machine, dust shield machine, ridge cap machine, roll shutter door
machine, uncoiling & leveling & slitting & recoiling line, all
kinds of decoilers and stackers, and many other related equipments
like shear, punch, slitter, leveler, crimping curving, bending and
so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils
,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel
coils/sheet ,cold/hot rolled sheet/cols , professional service and
favorable price , satisfied with the quality ,welcome to every
customers come to visit and buy ! ! !We will 24 hourse services for
you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light
gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry,
we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
