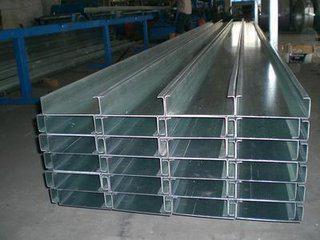

Steel C Channel Roll Forming Machine C Section Purline Cold Roll
Forming Machine
Steel C Channel Roll Forming Machine C Section Purline Cold Roll
Forming Machine
Man-made uncoiler, Roll forming machine, computer control system,
hydraulic control system, cutting
Our products are widely used in various industrial factory,
civilian building, warehouse and easy steel building manufacturing,
and have features such as nice appearance and durable.
Echnical parameters :
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main
Machine Of Roll Forming, Hydraulic Motor, Pre-Punching
Device,Pre-Cutting Device, Hydraulic Station, PLC Control,
Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Decoiler capacity | 3.5 tons |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
| Custom | According to customer's requirements |
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer &
exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has
more than 20 years experience in metal forming machine industry, so
we are able to assist customers with professional designing and
solution.
Our range of products: roof tile roll forming machine, cladding
roll forming machine, metal decking roll forming machines,
C/U/Z/W/L steel purlin roll forming machine etc. We also can supply
steel coils, roof panels to suit diverse requirements of our global
customers.
Today, we have exported our machines to America, Chile, Mexico,
Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji,
Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E,
Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria,
Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine
solution,competitive price and excellent service. We will continue
to do our best to supply perfect products and service for
customers. Invite you to contact us for further information.FAQ:1. How long the machine could be made?- Normally speaking, light
gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry,
we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
