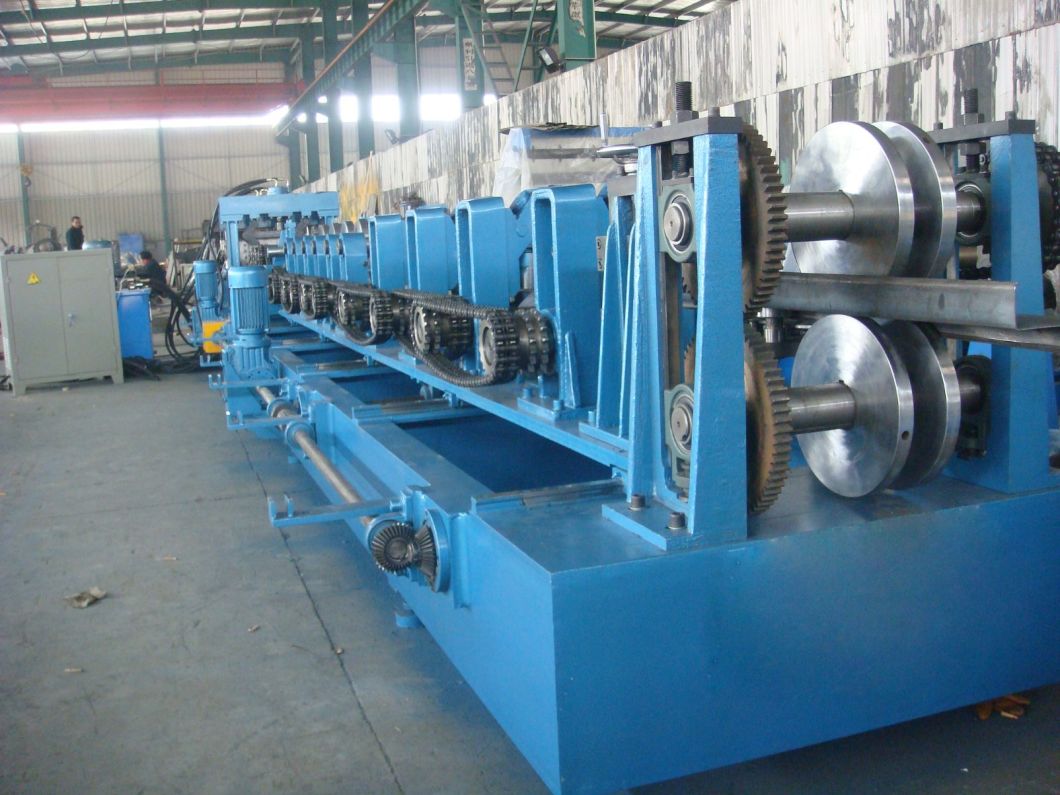

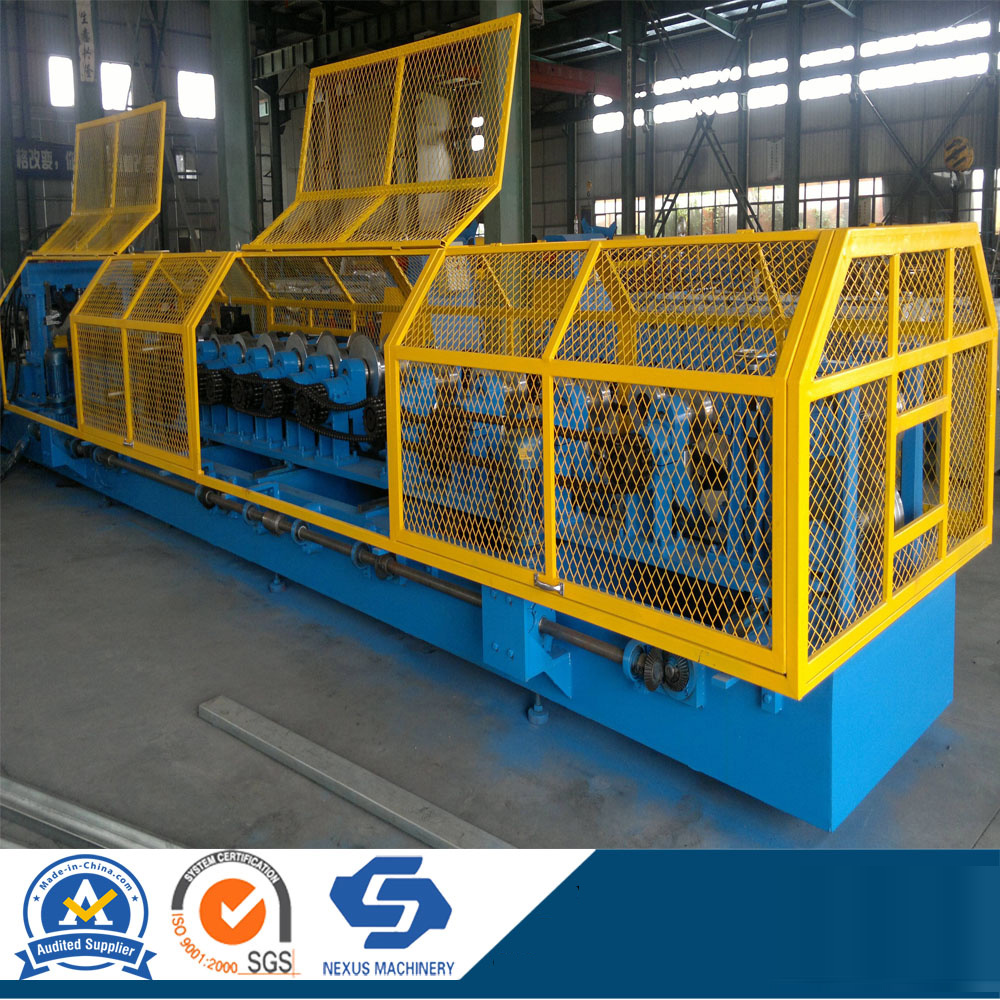

Automatic CZ Purlins Roll Forming Machine/Metal Purlin Roll
Former/Purlin Roof Forming Machinery
Automatic CZ Purlins Roll Forming Machine/Metal Purlin Roll
Former/Purlin Roof Forming Machinery with Export Standard maximum
production speed: more than 10 meters per minute (for
non-perforated profiles, excluding cutting);
Bending precision: the maximum profile deviations (dimensions and
shape) shall not exceed the tolerances specified in EN 10162 (or
equivalent tolerances);
Bending quality: ability to bend the profiles of the specified
configuration at the specified maximum steel thickness; cracking of
the steel or metal coating is not permitted for all required steel
grades, when observing the products under magnification ten times.
If you have your own special requirements,our machine can be also
customized.
Technical parameters :
| Product Name | Automatic CZ Purlins Roll Forming Machine/Metal Purlin Roll
Former/Purlin Roof Forming Machinery |
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main
Machine Of Roll Forming, Hydraulic Motor, Pre-Punching
Device,Pre-Cutting Device, Hydraulic Station, PLC Control,
Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 19.5 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Decoiler capacity | 3.5 tons |
| Roller Diameter | 80mm |

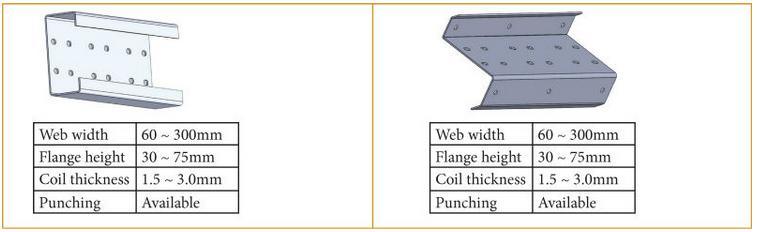

| Effective Width | 80-300mm |
| Feeding Thickness | 1-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
| Custom | According to customer's requirements |
ABOUT US:CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich
panel line all kinds of roll forming machines, such as glazed tile
roll forming machine, roof/wall panel roll forming machine, double
layer roll forming machine, Full-Automatic C and Z Purlin Roll
Forming Machine, floor deck roll forming machine, highway guardrail
machine, dust shield machine, ridge cap machine, roll shutter door
machine, uncoiling & leveling & slitting & recoiling line, all
kinds of decoilers and stackers, and many other related equipments
like shear, punch, slitter, leveler, crimping curving, bending and
so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils
,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel
coils/sheet ,cold/hot rolled sheet/cols , professional service and
favorable price , satisfied with the quality ,welcome to every
customers come to visit and buy ! ! !We will 24 hourse services for
you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light
gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry,
we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
