950 Corrugated Sheet Cold Roll Forming Machine Mini Corrugation
Roof Sheeting MachineryCorrugated sheeting is the traditional and familiar S-Rib profile
for roofing and cladding applications. It is the oldest and most
commonly used roofing profile because of its easy handling and
fixing properties and related strength. The S-rib is derived from
sinus curve and offers very strong and structural properties. 950 Corrugated Sheet Cold Roll Forming Machine Mini Corrugation
Roof Sheeting Machinery is one most popular type of roll forming machines. It makes
different shape of color steel roof sheet, which is used for
buildings, factory, supermarket ect. For this machine, it suits
thickness range is from 0.20mm to 0.60mm PPGI,GI sheet. We adopt
16mm thick wall board to make machine frame strong and beauty.
Usually it can run with the speed to10-15m/min, PLC with touch
screen operation make the machine simple and easy for usage.
1. Processing flow diagram of 950 Corrugated Sheet Cold Roll
Forming Machine Mini Corrugation Roof Sheeting Machineryh :
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting
→Output table

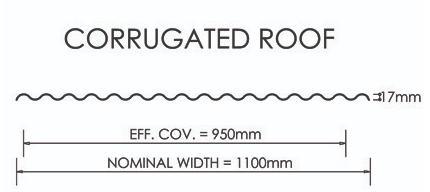

2. Profile Drawings for Reference:
3. Technical parameters for 950 Corrugated Sheet Cold Roll Forming
Machine Mini Corrugation Roof Sheeting Machinery :1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1000mm |
3 | Thickness of the plate | 0.3-0.8mm |
4 | De-coiler | Manual one, can load 5 tons raw material |
5 | Rollers for forming | 15 rows |
6 | Diameter of the roller | 76mm |
7 | Rolling material | Carbon Steel 45# |
8 | Main motor power | 5.5kw |
9 | Productivity | 15-20m/min |
10 | Cutting method | Hydraulic mould cutting |
11 | Material of the cutting blade | Cr12 |
12 | Hydraulic cutting power | 3kw |
13 | Processing precision | Within 1.00mm |
14 | Control system | Delta PLC control |
15 | Side panel of machine | 18mm |
16 | Main structure of the machine | 350 H steel |
17 | Weight | About 4.6T |
18 | Dimensions | 7.5*1.6*1.2m |
19 | Voltage | 380V 50Hz 3phases(changeable as needs) |
20 | Certificate | CE/ISO |
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | 950 Corrugated Sheet Cold Roll Forming Machine Mini Corrugation
Roof Sheeting Machinery
(Includes Hydraulic cutting, PLC computer, Electrical cabinet,
Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | | 4 |

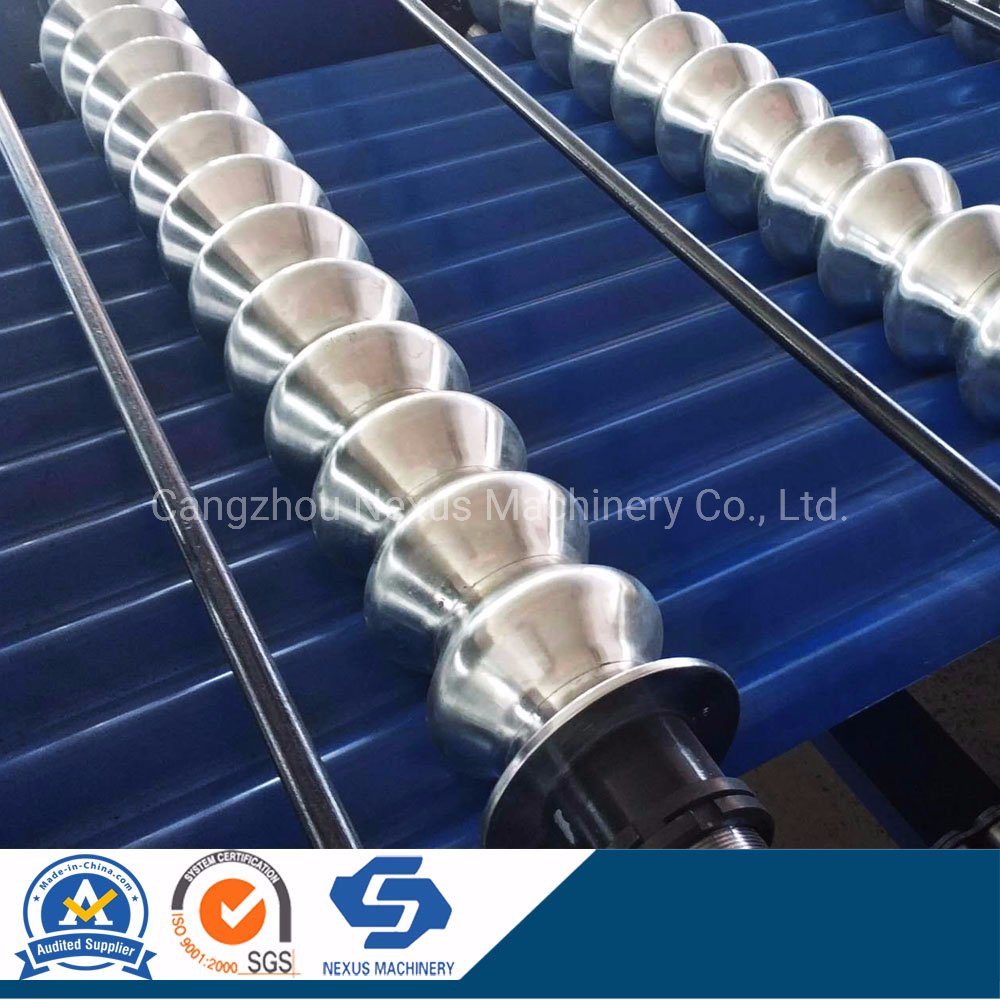

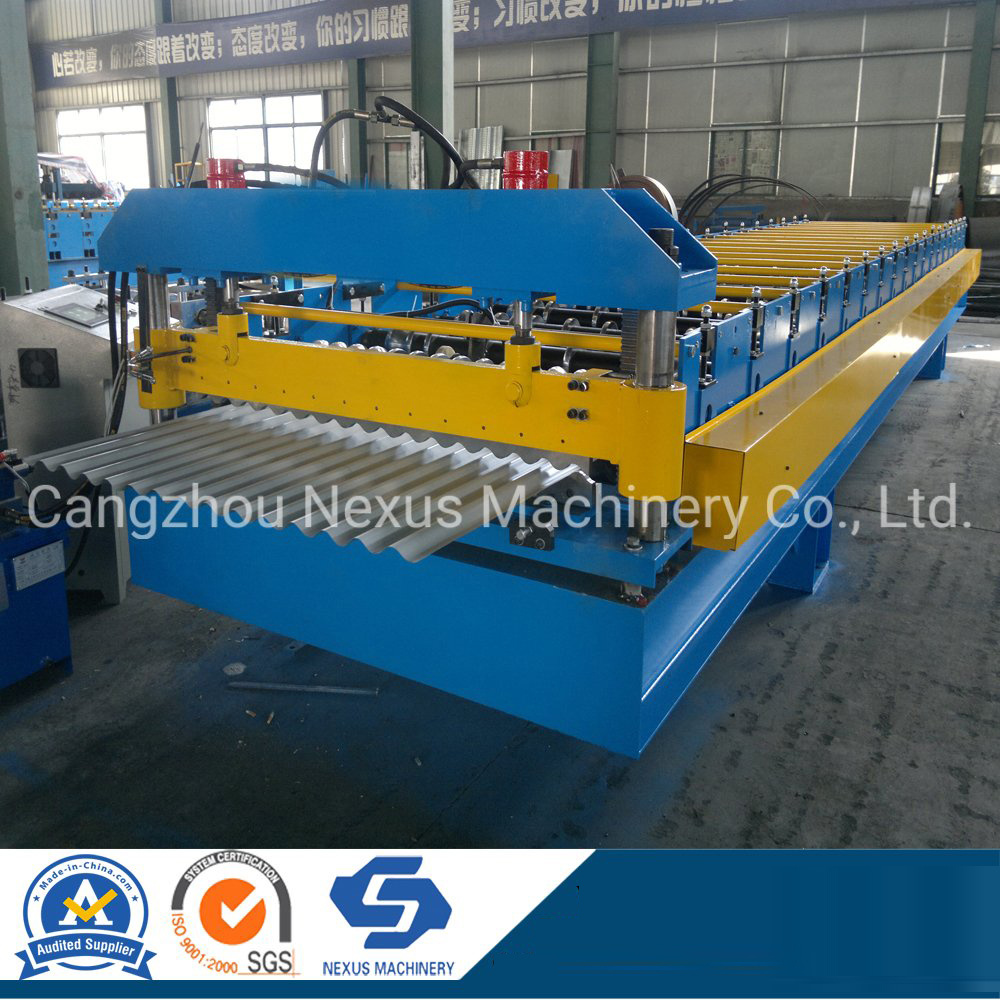

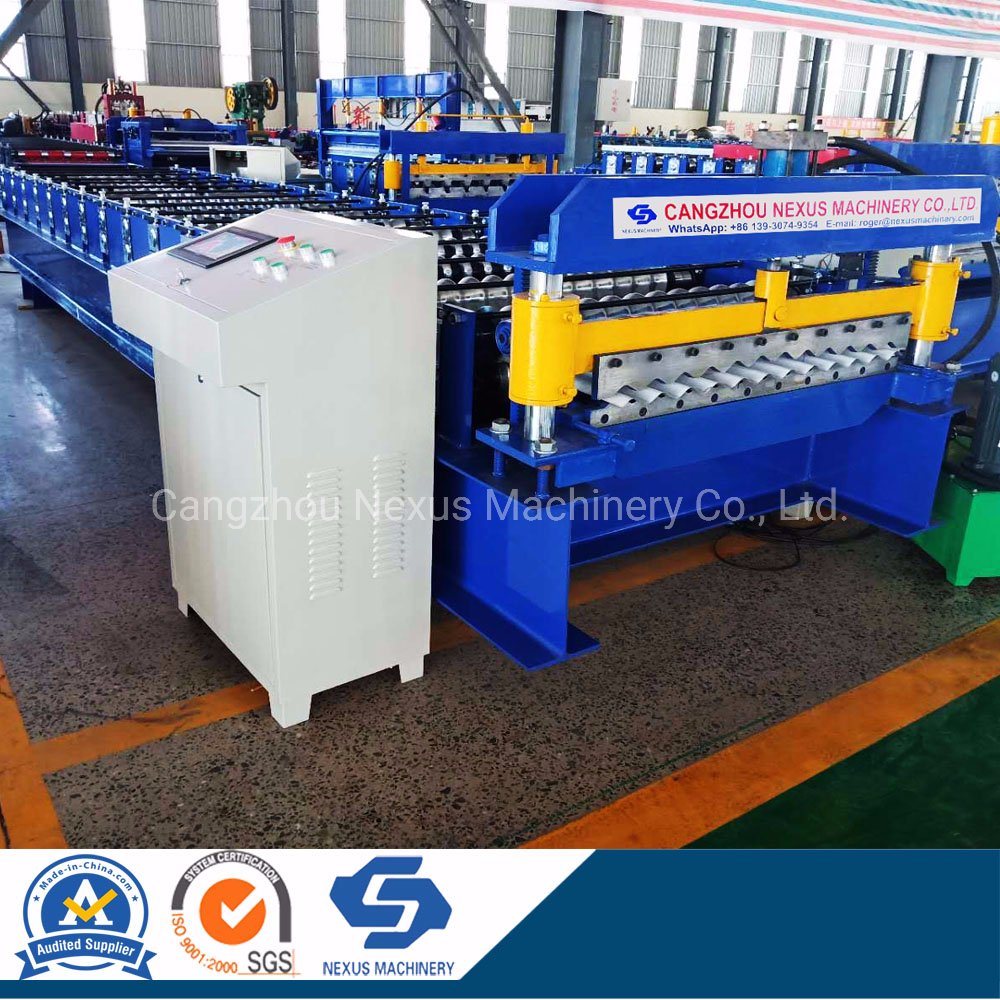

More Photos for your choose:
