Classic Rib Spandrel Panels Roll Forming Machine Meta Span Siding
Sheet MachineryMetaSpan Rib Spandrel panels are excellent cover of choice for
linear ceilings. It features a rib-type design that is
aesthetically pleasing to the eye. In addition to the visual
advantages, Its prepainted zinc coated metal ensures that each
panel has enough strength to resist rusting over long periods of
time. And like most of our products, we provide this at custom cut
lengths to fit your specific requirements.Product Description

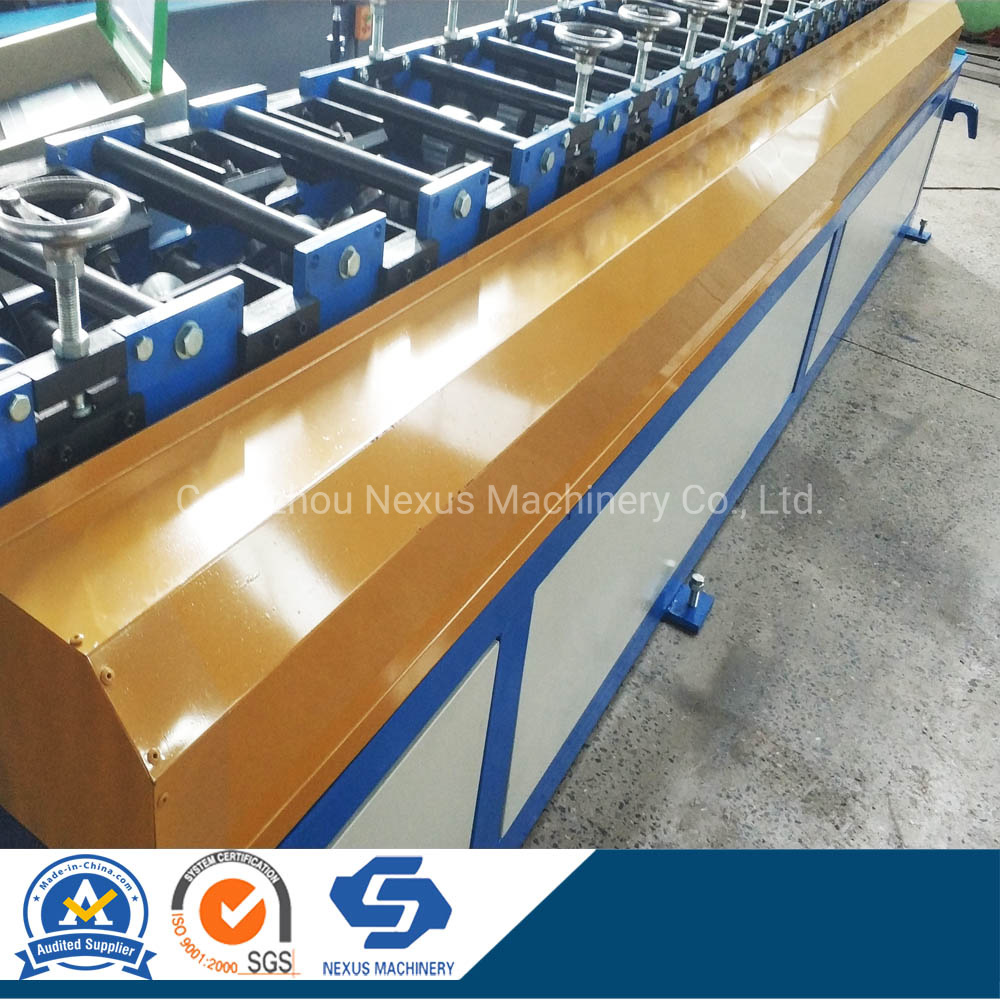

Classic Rib Spandrel Panels Roll Forming Machine Meta Span Siding
Sheet Machinery is one most popular type of roll forming machines.
It makes spandrel profile roofing sheet, which is used for roof
ceilings. For this machine, it suit coil width is 151mm, thickness
range is from 0.3mm to 0.8mm. Final sheet width is 101mm(4 inches)
We adopt wall panel type to make machine frame strong. Usually it
can run with the max speed to 15m/min, PLC with touch screen
operation make the machine simple and easy for usage.
Detailed Photos
Product Parameters
| Profile | Coil material thickness: 0.20-0.70mm
Sizes: according the profile drawings
Processing Material :PPGI steel
Feed Width(mm): 151m |
| Process flow | Decoiler--Feeding--Forming--Hydraulic Punching--- Hydraulic Cutting--Product Table |
Manual Decoiler | 1).Material coil inner diameter: 450mm-550mm
2).Max coil Width:500mm
3).Carrying capacity: 1.5T
4) Type of decoiler: Manual
5) Weight of decoiler: 100 KGS |
Forming System | - .Roller station:16 stations
- .Shaft material:45# steel
- Outer diameter:50mm
- Roller material: Cr12MoV
- .Transport: chain transmission
- .Forming Speed: 8-12m/min
- Length Measurement:counter
- .Motor:3kw, Shanghai Lichao
- .Normal Size of Machine: 6.5mx1.5mx1.45m or as design.
- Voltage:440v,60Hz,3 phase
|
Cutting System | Material: blade and mold material: Cr12MoV steel with quenched
treated 60-62ºC
Cutting system: Advanced hydraulic drive, automatic cutting with no
stop, no distorting or wasting, high level safety factor. |
| Punch system | Material: mold material: Cr12MoV steel with quenched treated
60-62ºC
Cutting system: Hydraulic punching |
Control System | Screen: 7 inch touch screen, Delta.
PLC, Inverter Delta.
Encoder: Omron
Automatic quantity measurement ,Automatic length measurement
Computer is used to control length and quantity. Machine will
automatically cut to length.Length inaccuracy can be amended easily |
Hydraulic System | 1). Hydraulic system made in china
2). Power:3kw
3) Oil: Hydraulic 46#
|
| Spare parts | One PLC module with program installed |
Certifications
Packaging & Shipping
Company Profile
After Sales Service
1. Engineer will give free training lessons to labors in buyer's
factory.
2. The Buyer need buy the round-trip air ticket for Engineer if
visa application is approved. The buyer is also responsible to bear
expenses generated, e.g. visa formalities, meals, accommodation and
allowance of USD100 per day for engineer.
3. During this guarantee period, we will provide spare parts
without any charge in case of quality discrepancy caused by us. If
the malfunctions are caused by incorrect operations, we will
provide the buyer spare parts at cost price.
4. We will charge the buyer cost price of spare parts beyond one
year and provide long-term technical guide.
