Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine

Product Description

Customer Question & Answer

Ask something for more details (0)

CE certificate Double Layer metal roofing sheet glazed tile roll forming machine

Advantage:
-CE certificate Double Layer metal roofing sheet glazed tile roll forming machine as customers request,
- each layer has the standalone feeding table, the width is fixed by screw as customer's drawing.
- Double layer roofing machine help customer save space, and save shipping cost, but can not working 2 layers at same time, only can working one by one.

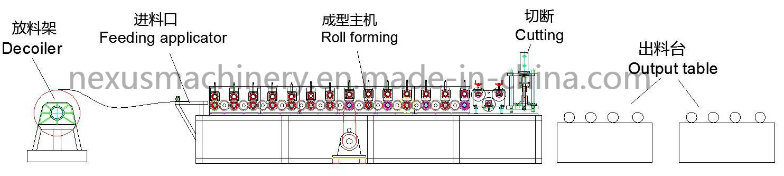

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine

2. Technical parameters:

No.	Item	Specification
1	Can Formed Material	PPGI,GI,AI
2	Equipment operation	Automatic
3	Voltage	380V 60Hz 3Phase or as your requirement
4	Thickness of sheet (mm)	0.3-0.6mm
5	Material width(mm)	As your requirement
6	Cover Width of the sheet after formed	as your drawing
7	The size of the roll forming machine	7500mmx1600mmx1750mm
8	Speed	0-15m/min
9	Diameter of shaft	70mm
10	Weight of the Machine	8000-9500KGS
11	Material of rollers	C45 steel quenched and chromed
12	Motor brand	Siemens or Guomao
13	PLC	Siemens or Delta or Mitsubushi
14	Total power (kw)	9.5kw
15	Power of hydraulic system	5.5kw
16	Power of main molding core	4kw

3. Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	1
2	CE certificate Double Layer metal roofing sheet glazed tile roll forming machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

4. Character of main structure:

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
It is very easy to install the equipment and suitable for producing in the factory.
Low noise with high efficiency.

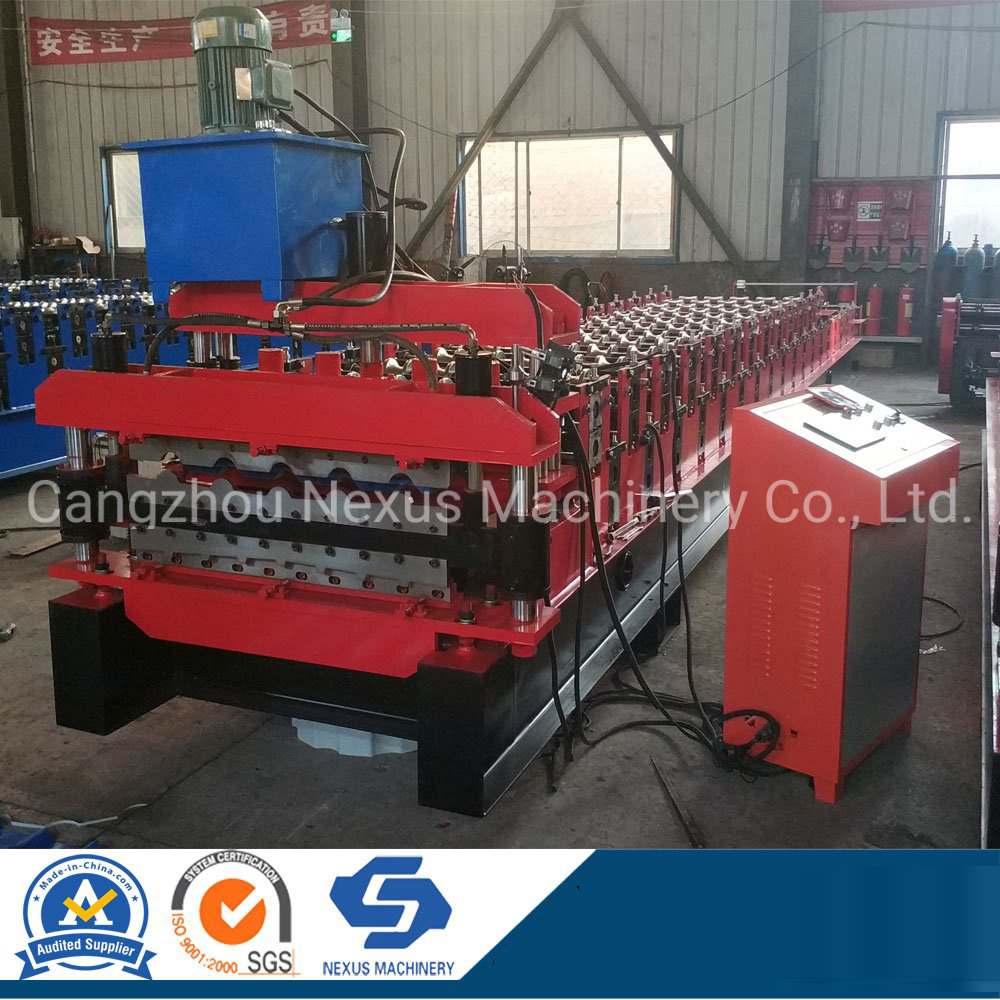

5. Photos of NCE certificate Double Layer metal roofing sheet glazed tile roll forming machine for Reference:

6.More Products for Choose:

Exhibitions Photos:

FAQ:

Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
