Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine for Sale

Product Description

Customer Question & Answer

Ask something for more details (0)

Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine For Sale

The Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine is a special machine to make high strength roof panel,such as G550 760.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

2. Profile Drawings for Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine For Sale:

3. Technical parameters for Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine For Sale :

TECHNICAL PARAMETERS FOR ROLL FORMING MACHINE
Serial Number	Item	Parameters	Remark
Applicable material	Type	GI/PPGI
	Thickness	0.25-0.6MM
	Yield strength(Mpa)	G550 760
Main performance parameters	Forming speed(M/MIN)	12-20M/MIN
	Machine size(L×W×H)	91.61.2	Refer to the machine
	Power supply(KW)	7.5+4.0	Motor and Hydraulic Motor
MACHINE COMPONENTS FOR PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
2.Forming machine	Main Roll Forming Machine	1 set	About 22 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system	Hydraulic Cutting Device		post cutting
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	2 PCS	no power

4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

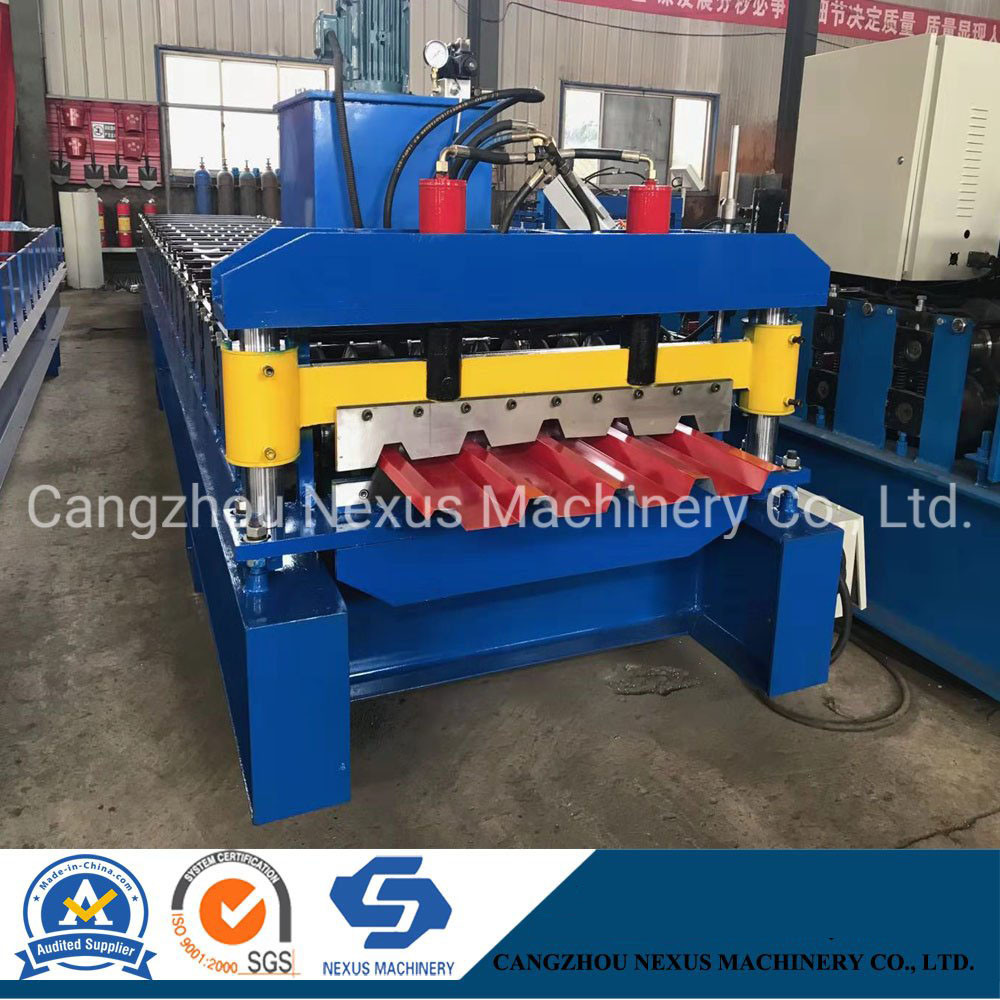

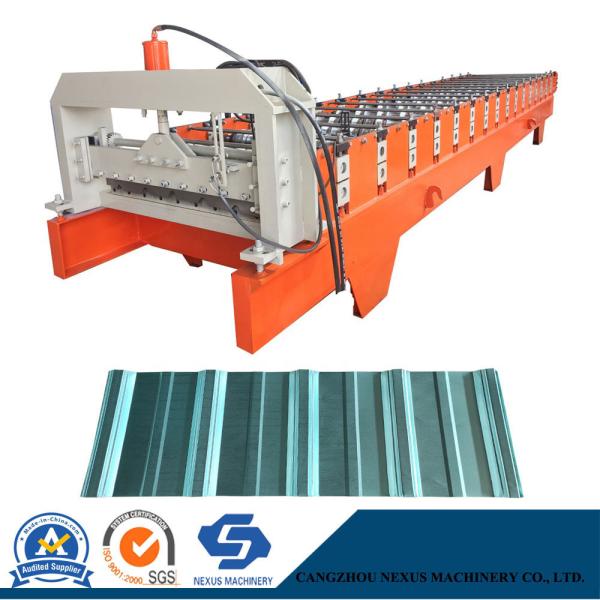

5. Photos of Indonesia Type G550 760 Steel Roofing Tile Sheet Roll Forming Machine For Sale for Reference:

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
