    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine

    Product Description

    Customer Question & Answer

    Ask something for more details

    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine

    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine is one most popular type of roll forming machines. It makes thin zinc sheet, which is used for buildings, factory, supermarket ect. For this machine, it suits thickness range is from 0.12mm to 0.30mm, G550 strength galvanized steel. We adopt electric drive to roll drum barrel and make it.


    1. Profile Drawings for Reference:
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    3. Technical parameters:
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    Main motor power11kw
    Drivesingle chain
    TypeBarrel corrugating
    Pitch76.2mm(+/-2.0mm)
    Depth18mm(+/-1.5mm)
    Main shaft diameter140mm
    Height of corrugationMaximum 20mm (it can adjustable)
    Roll station2 groups
    Raw material of sheets0.2-0.8mm thick galvanized steel
    Guide feeding typeWelded steel structure with stopper for setting width.
    Feeding length of sheetMaximum 4200mm
    Feeding width of sheet762mm,914mm,1000mm( can customize)
    Working speed15m--20m/min
    Weight of machineabout 2 ton
    Size of machineAbout 2000×4500×800mm L x W x H
    Color of machineYellow and blue
    Voltage480V 60HZ,3phase
    Other electrical elementTop brand

    4. Equipment list :
    No.Product NameQTY
    10.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine1

    5. Character of main structure:
    1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
    2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
    4. It is very easy to install the equipment and suitable for producing in the factory.
    5. Low noise with high efficiency.

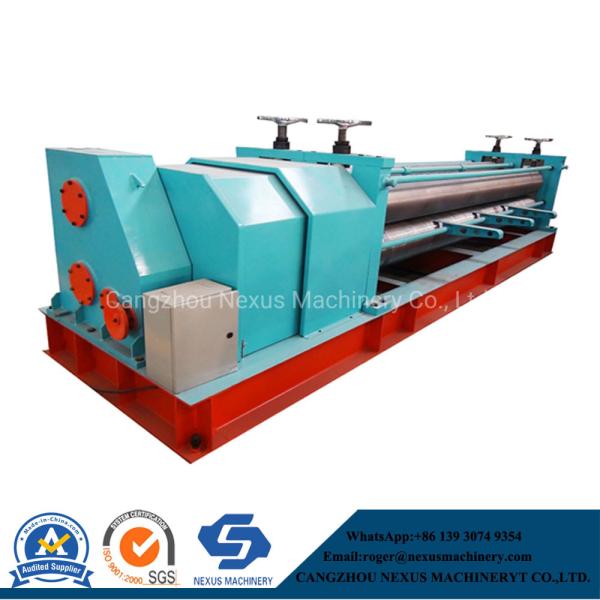

    6. Photos of 0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine for Reference:
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine

    7. Why Choose US?
    1. More than 10 years experiences in manufacturing roll forming machines.
    2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
    3. High performance in operation, maintenance, and debugging. Easy to load and unload.
    4. Good machine quality, Competitive price and Fast delivery time and superior service.
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
    0.12/0.14mm/0.18mm Thin Thickness Barrel Type Corrugated Roof Roll Forming Machine
