Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine

Ask Lasest Price
Supply Ability :	10
Payment Terms :	L/C, T/T, Western Union, Money Gram
Certification :	CE, ISO9001

Add to Cart

Product Details
Company Profile

Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine

Product Description

Customer Question & Answer

Ask something for more details (0)

Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine

Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine could be used to make the angle beads in batch fully automatically. Angle beads are strips of thin sheet metal or plastic that are used to cover the outside corners of plastered or drywalled walls. They are long corner strips that are usually made of solid material right at the corner and made of perforated or meshed material at the edges. The multihole flanges of the metal bead for effective compound adhesion. The small nose bead for corner lines shape. And it is easy to install with nails and other fasteners.

Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine

Configurations	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Suitable to process	Color steel plate
Width of the plate	98/133/163mm
Control System	PLC Colored Touch Screen

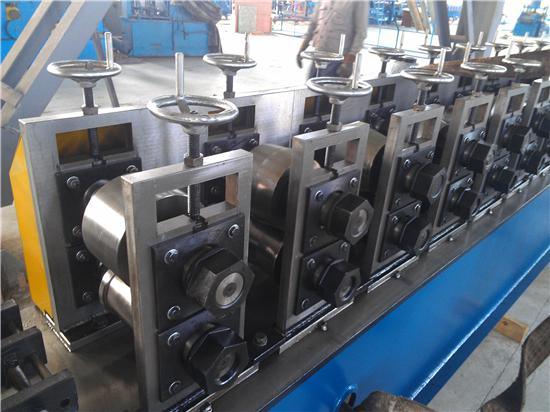

Rollers	10 stands
Shaft Diameter	60mm
Thickness of the plate	0.3-0.8mm
Hydraulic Pressure	10-12MPa
Roller Standard	45#steel with chrome coating heat treatment
Cr-Plating Size	0.05mm
Cutter Standard	Cr12
Power	5.5+3kw
Voltage	380V 50Hz 3phases
Overall Size	2.3Tons

ABOUT US:

Automatic Bare Steel Light Gauge Frame Wall Angle Roll Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
