Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

Ask Lasest Price
Supply Ability :	10
Payment Terms :	L/C, T/T, Western Union, Money Gram
Certification :	CE, ISO9001

Add to Cart

Product Details
Company Profile

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

Product Description

Customer Question & Answer

Ask something for more details (0)

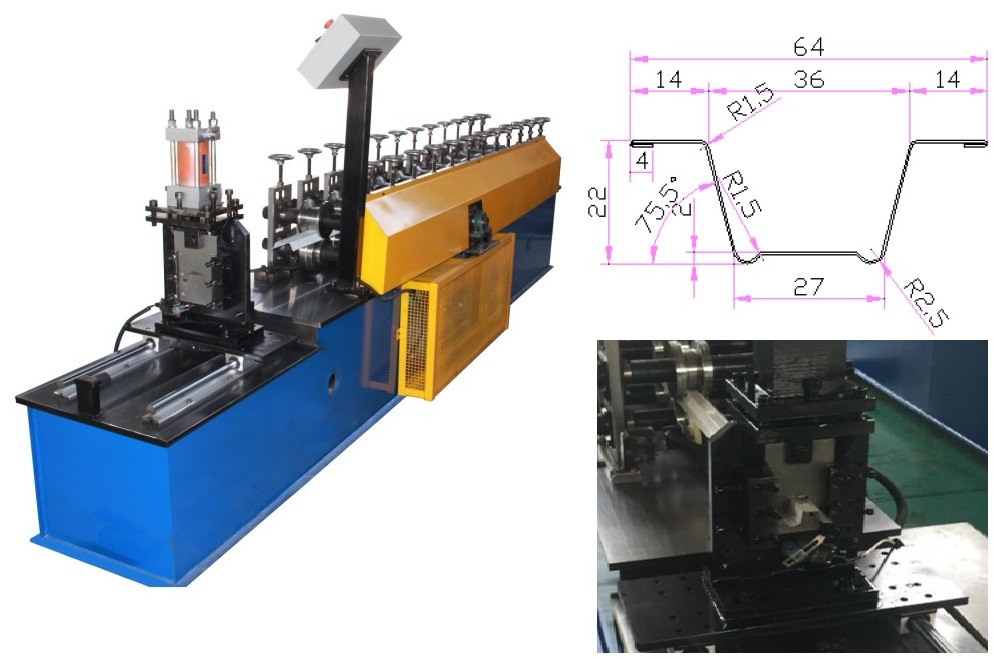

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

The Automatic Hydraulic Cutting Omega Profile Steel Framing Machine can manufacture various kinds of light keel,Produced keel has a beautiful appearance.

Configurations	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Suitable to process	Color steel plate
Width of the plate	98/133/163mm
Control System	PLC Colored Touch Screen
Rollers	10 stands
Shaft Diameter	60mm
Thickness of the plate	0.3-0.8mm
Hydraulic Pressure	10-12MPa
Roller Standard	45#steel with chrome coating heat treatment
Cr-Plating Size	0.05mm
Cutter Standard	Cr12
Power	5.5+3kw
Voltage	380V 50Hz 3phases
Overall Size	2.3Tons

ABOUT US:
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

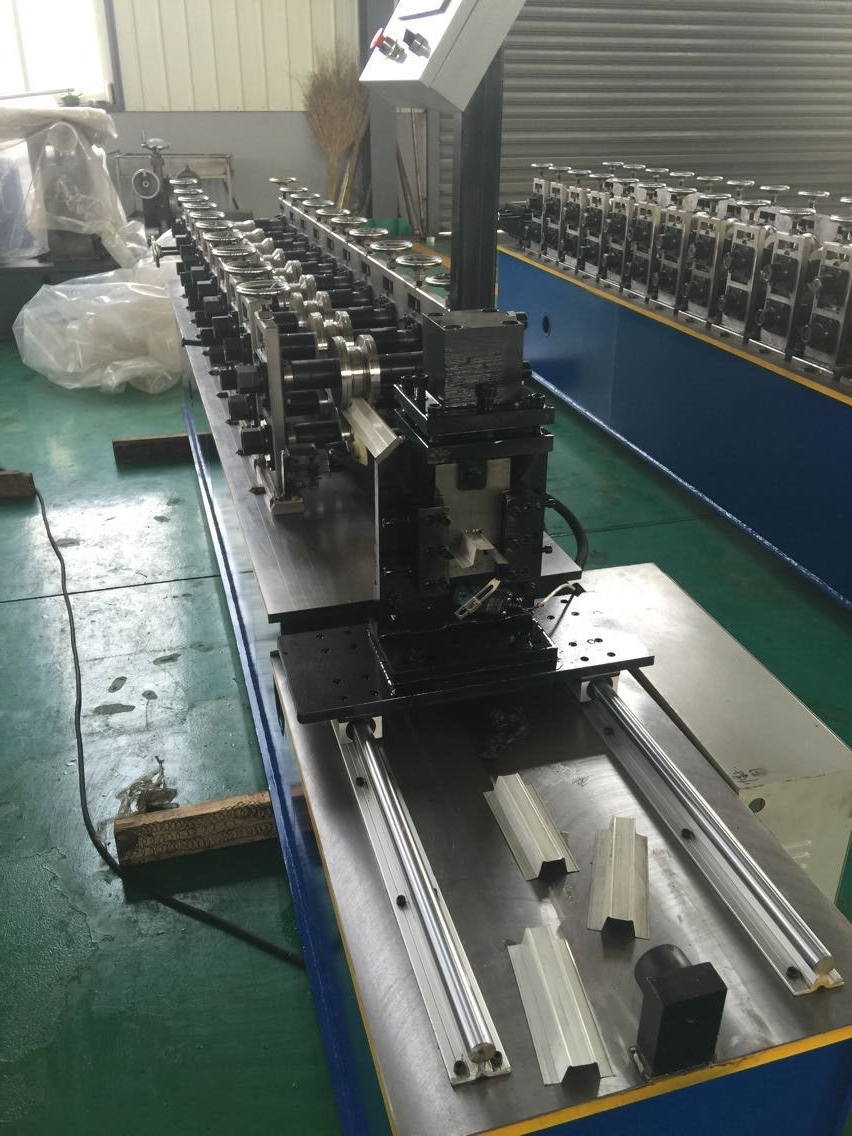

Package Photos of Roll Forming Machine:
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

Contact Us:

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
