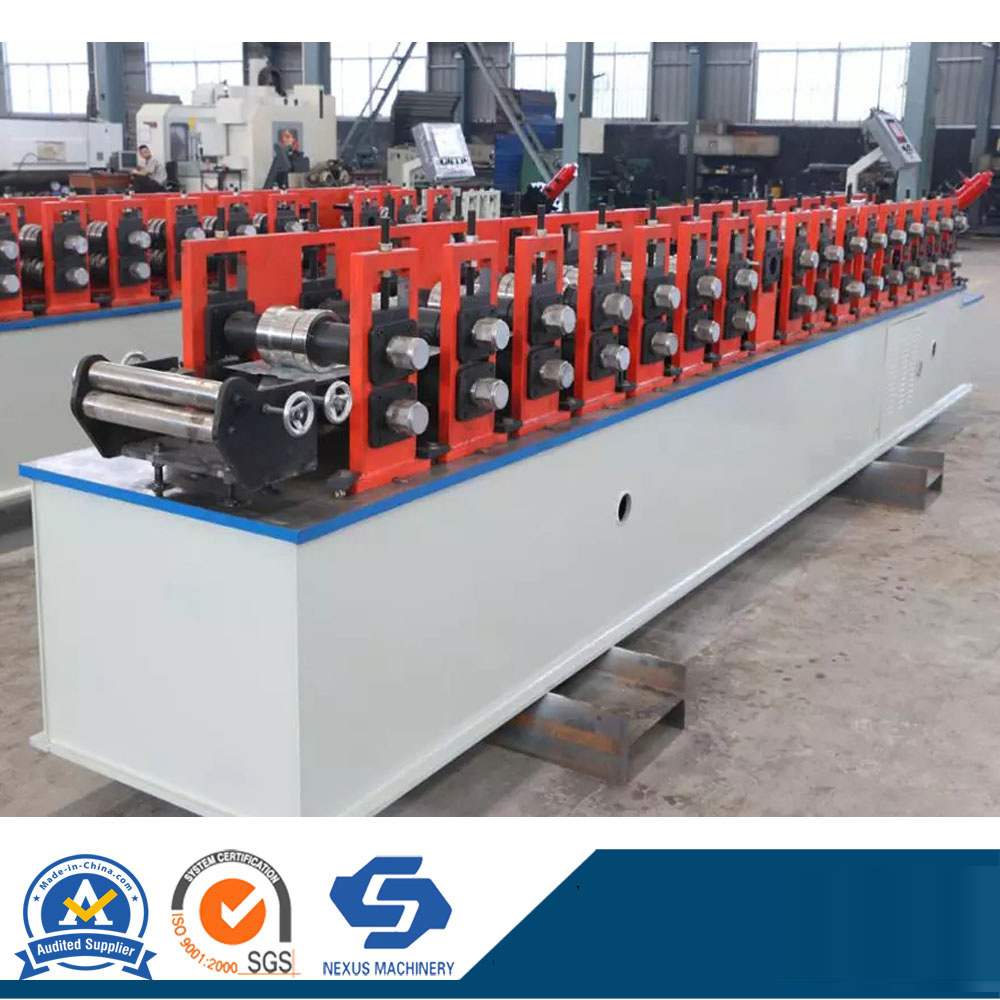

Stud And Truss Profile Roll Forming Machine
Stud And Truss Profile Roll Forming Machine offer builders a
competitive alternative to traditional wood trusses.This machine
provides significant improvements over other light gauge steel
trusses currently available.Our machine could update with the
fashio for providing new design increases material efficiency, ease
of fabrication, simplicity of erection, and improved safety of
material handling. No matter for running business or for big
construction, this machine will be good helper for you
Technical Parameters:
No. | Stud and truss profile roll forming machine |
1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
2 | Thickness of coil sheet | 0.3-0.8mm |
3 | Coil width | as customer's profile drawing requirement |
4 | Effective width | as customer's profile drawing requirement |
5 | Material of main frame | welded by 6mm steel plate |
6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
7 | Roller | Cr12 |
8 | Thickness of middle plate | Memorial archway |
9 | Forming station | 12 rows |
10 | Drive type | Gear |
11 | Power of main motor | 5.5 kw, Lichao, Shanghai, with reducer |
12 | Servo motor | 1.5KW |
13 | Forming speed | About 25-30m/min |
14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
15 | PLC | DELTA(TAIWAN)/Mitsubishi |
16 | Material of cutting blades | Cr 12, quenching 58-62ºC |
17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the
length accuracy ±1mm, far better than industrial standard ±3mm. |
18 | Switch | CHNT |
19 | Frequency changer | Delta,Taiwan |
ABOUT US:
FAQ:1. How long the machine could be made?- Normally speaking, light
gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry,
we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the
world.We need your machines running in order to keep your business
running.
