Corrugated Board Sheet Roll Forming Machine with Automatic StackerCorrugated Board Sheet Roll Forming Machine with Automatic Stacker
, sheets are protected from scratches all the while keeping your
rollformer in production. The sheets stay protected by sliding
along the rollers and guides rather than each other. The pneumatic
powered stacker arms are triggered by a photo eye which releases
the panels and drops them onto the stacked sheets. The design of
both stackers allows for minimal drop distance of the panel which
is critical key to a successful stacker. The drop distance is
normally four inches. The less distance the sheet has to drop, the
more uniform the stacked sheets will be.
Once an order is compete, the discharge table transfers the order
onto the C-frames for packaging, then returns back to the stacker
to allow the rollformer to stay running. The discharge table is
fully powered - in, out, up, down. This creates a higher production
rate and in turn, makes your company more profitable.
1. Processing flow diagram of Whole Production Line:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting
→Output table(Automatic Stacker)
2. Technical parameters:| Corrugated Board Sheet Roll Forming Machine with Automatic Stacker |
| Main motor power | 2.2kw |
| Drive | pneumatic |
| material | 45# forge steel and quenched |
| Length of stacker | 6m/8m/12m |
| Weight of stacker | About 5 ton |
| Size of stacker | About 10000×1800×2000mm L x W x H |
| Color of stacker | Yellow and Blue or Customized |
| No. | Product Name | QTY |
| 1 | Corrugated Board Sheet Roll Forming Machine with Automatic Stacker | 1 |
1) Engineer will give free training lessons to labors in buyer's
factory.
2) The Buyer will buy the round-trip air ticket for Engineer if
visa application is approved. The buyer is also responsible to bear
expenses generated, e.g. visa formalities, meals, accommodation and
allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts
without any charge in case of quality discrepancy caused by us. If
the malfunctions are caused by your incorrect operations, we will
provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one

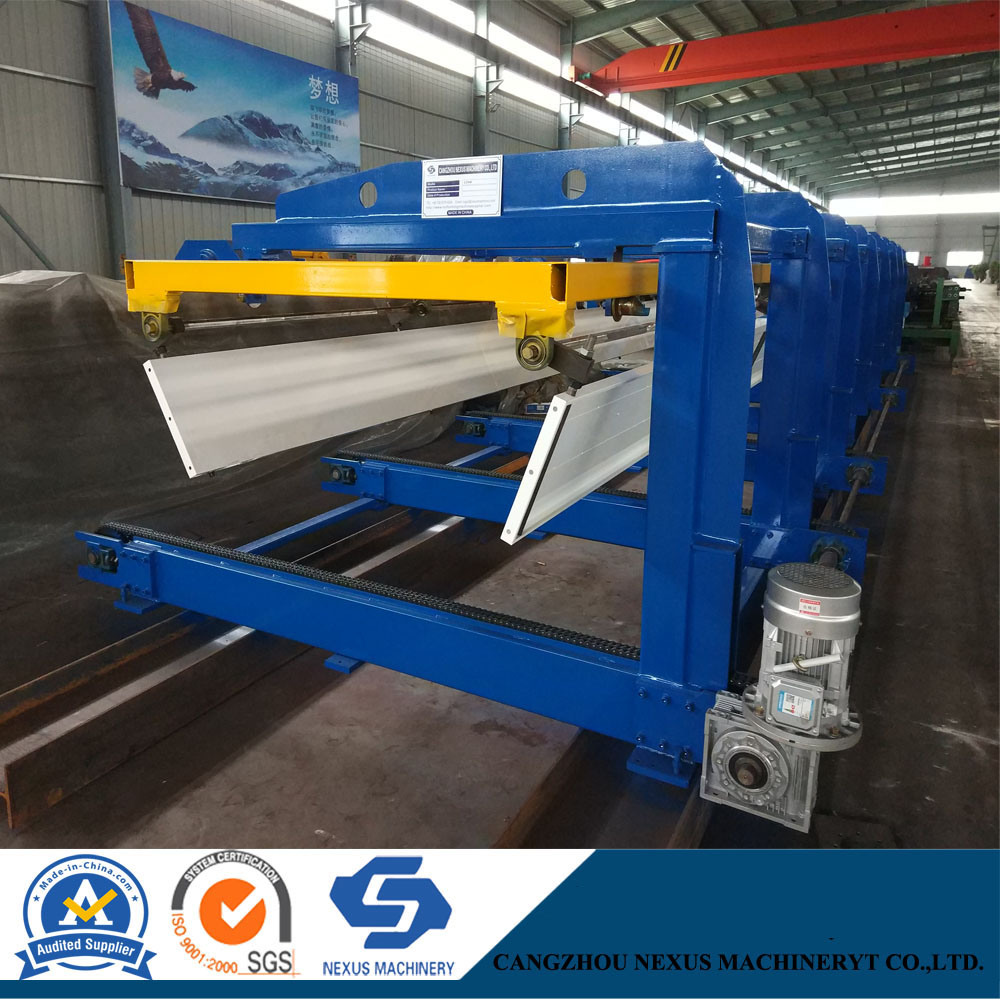

year and provide long-term technical guide.5. Photos of Corrugated Board Sheet Roll Forming Machine with Automatic Stacker :
FAQ:
1. How long the machine could be made?- Normally speaking, stacker
machine could
be made within 45 working days. If you need machines in a hurry, we
can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai
Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled
technicians available across the world.We need your machines
running in order to keep your business running.
